Boilers

MVB

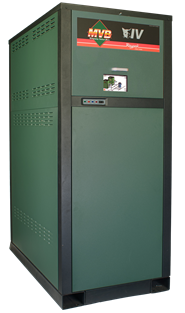

Buy MVB Water Heaters from Raypak in Michigan - P2503-thru-P4003-transparent-imageTime-honored technologies unite with cutting-edge advancements in Raypak’s MVB modulating vertical boiler.  Small space is no longer a problem, and our compact design fits through a 32” door opening to make it the perfect choice for those hard-to-reach retrofit projects.

Key Features

  • Positive vent pressure, Condensing Appliance.  Cat IV Vent Required.
  • Cast-Iron Headers with Copper Finned-Tube Heat Exchanger standard. Brass Headers and Cupro-Nickel tubes available as options. ASME Section IV constructed and stamped, National Board registered.
  • CSA Low-Lead certified: less than 0.25% Lead.
  • Certified to ANSI Z21.13.
  • Minimum Inlet Water Temperature: 120°F.
  • Maximum Operable Outlet Water Temperature: 235°F.
  • Electronic Modulation, up to 7:1 Turndown.
  • VERSA IC® Control Package with Built-In Outdoor Reset Function and LCD Display, Including System Sensor, Indirect Sensor & Indirect Supply Sensor.
  • Status Display Lights.
  • Cascade Control of up to 4 units, no external sequencer required.
  • Diagnostics Center with History, English, no codes.
  • Modbus RTU BMS port (RS485).
  • 0-10 VDC BMS Interface (Setpoint or Direct Drive).
  • All models for indoor/outdoor construction.
  • Certified under SCAQMD Rule 1146.2.  Meets all Low NOx regulations.
  • Engineered with precisely matched system components.
  • Smallest installed footprint (5.4 square feet) design fits tight spaces and easily replaces larger boilers.
  • 100% Factory Fire Tested.
  • Complete cabinet protects all controls and wiring. Tough, rust-resistant powder-coat finish.
  • Suitable for altitudes up to 10,000 ft. (derate above 2,000 ft.).
  • No boiler condensate drain required (proprietary design)
  • Available for natural gas or propane.
  • Integral Combustion Air Filter (MERV8).
  • Multiple Pump Outputs – Boiler Pump, System Pump, Indirect Pump.
  • Whisper-Quiet Operation.
  • Proudly Assembled in the USA.



Brochure, Use & Care Manual, Spec Sheet

Raytherm® Atmospheric Boilers & Water Heaters

Design simplicity, quality materials, and meticulous craftsmanship have earned Raypak a rock-solid reputation for reliability. While others busily design cost out of their products, Raypak has continued to engineer dependability in.

XFyre (Condensing)

94% Thermal Efficiency at Full Fire, up to 99% part load
3 models – 300,000, 500,000 and 850,000 BTUH

Raypak is proud to introduce the all new XFyre Modulating, Condensing Boiler. Indoor and Outdoor construction is standard.

XTherm (Condensing)

96% Efficiency (Cat.IV) Hydronic Boiler
97% Efficiency (Cat. IV) Domestic Hot Water UP to 99% part load
3 models – 1,000,000, 1,500,000 and 2,000,000 BTUH

Time-honored technologies unite with cutting edge advancements in Raypak's XTherm modulating vertical heater.

Hi Delta

84% Standard Boilers
85% Standard Water Heaters
18 models from 120,000 to 2,340,000 BTUH
Copper fin tube style boiler for domestic hot water and Hydronic heating applications. This budget-friendly model has flexible designs with many options including dual fuel gas train (Nat. /LP), stackable, cold water start / cold water run solutions and many control configurations.

Delta Limited

84% Standard Boilers
85% Standard Water Heaters
12 models from 399,000 to 2,340,000

Copper fin tube style boiler for domestic hot water and Hydronic heating applications. This model is a cost effective solution.

EVO

80,000 to 8,000,000 BTU
Hamilton Engineering’s full line of condensing combustion products (EVO Boilers with Innovative Condensing Technology) are the mainstream in energy and emissions saving technology today.

Custom System Solutions

A Hamilton Engineering Custom System Solutions are built and sized to meet the space constraints and your floor plan. Factory designed, engineered, and pre-fabricated for your specific individual project. Why take days on site when this takes just minutes to set up to start making system field connections?

EVO Boilers & Water Heaters with Innovative Condensing Technology

The EVO family of products was designed from the ground up, using technology and components that have been proven in millions of products since 1992, assuring you proven, simple, efficient technology that is identical throughout our entire product line. If you can understand, set up and service our HW 79 product, you can do the same with our HW 1999. Our EVO products are virtually identical, with the exceptions of internal operating software and a few safeties, as required by code.
